Kem Medical Products Vapor Trak Real Time Gas Monitoring

Ethylene Oxide Gas Alarm Systems

Alarm

Kem EtO gas alarm Features:

Detect leaks and spills of all EO mixtures
24 hour surveillance system
Audible and visual alerts
Easily mounts on wall
Manufactured in USA

Alarms are available in both 20ppm and 50ppm, the different alarms can be hooked up to the same annunciator.
If you already own a stand-alone alrm, it can be upgraded to work with the annunciator. (800)875-9028
Alarms can be added to the annunciator any time, up to four (4) total.
Alarms are available with an optional delay switch, this will momentarily silence the audible signal, the red light remains on.
The delay switch can be added to alarms after sale. (800)875-9028

VAPOR-TRAK EO Gas Alarm Monitor

#9000-20 20ppm alarm $1,950.00/each

#9000-50 50ppm alarm $1,950.00/each

Alarm Instructions

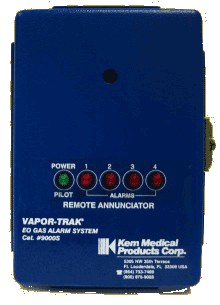

Annunciator

Remote Alarm System/Annunciator:

Up to four alarms located in different areas can be monitored from one central location.
Audible and visual alerts.
Easily mounts on the wall.
Manufactured in USA.

Annunciator

VAPOR-TRAK EO Gas Alarm System

#9000S-1 (includes 1-annunciator & 1 alarm) $2,750.00

#9000S-2 (includes 1-annunciator & 2 alarms) $4,280.00

#9000S-3 (includes 1-annunciator & 3 alarms) $5,700.00

#9000S-4 (includes 1-annunciator & 4 alarms) $6,920.00

#9000SA Additional Annunciator $840.00/each

#9000R-20 Additional 20ppm alarm w/remote support $2,160.00/each

#9000R-50 Additional 50ppm alarm w/remote support $2,160.00/each

Alarm Calibration Kits

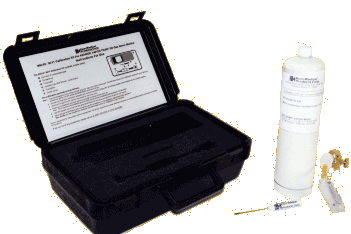

Calibration kit

MSDS for #9010 & 9011 calibration gas cylinders

Calibration Instructions

To ensure proper maintenance of the EO alarm each unit should be calibrated every three (3) months.

Calibration Kits include:

1 cylinder of non-toxic calibration gas
Regulator/flow-meter/sensor-cover tool
Screwdriver
Convenient carrying case

#9010 EO Alarm calibration kit for 20 ppm alarms $290.00/kit

#9010G Refill calibration gas cylinder only for 20ppm alarms $205.00/each

#9011 EO Alarm calibration kit for 50ppm alarms $290.00/kit

#9011G Refill calibration gas cylinder only for 50ppm alarms $205.00/each

How to Calibrate VAPOR TRAK® 9000/9000R EtO alarm

Hook up VAPOR TRAK® 9000R EtO alarm to annunciator

Kem Glutaraldemeter

Kem Glutaraldemeter

Easy to use, hand-held monitoring device, with a digital display. It measures exposure undetected by both badges and sample pumps and records instantaneous readings down to 0.03 PPM.

#9150 - Kem Glutaraldemeter includes:

Kem Glutaraldemeter (battery included)
Field glutaraldehyde calibration standard
Thermometer
Phenol filters
Manual
Certificate of Calibration

#9150 - Kem Glutaraldemeter kit $2195.00/kit

#9151 - Calibration Standard only $224.00/each

#9152 - Phenol Filters 100/box $299.50/bx

#9153 - Centigrade thermometer $20.00/each

Formaldemeter htv

Formaldemeter

The Formaldemeter htv is a battery operated hand held unit that is simple to use. Push one button and in 10 seconds the formaldehyde level is displayed.

The standard detection range of the instrument is 0.05-10 ppm HCHO.

The Formaldemeter htv software can be modified to measure high formaldehyde concentrations, up to 100ppm HCHO

#9140 - Formaldemeter htv kit includes

Formaldemeter htv (battery included)
Field formaldehyde calibration standard
Thermometer
Phenol filters
Manual
Certificate of calibration.

#9140htv - Formaldemeter-htv w/Calibration Standard and carry case $2,295.00/each

#9140htvm-2 - Formaldemeter-htvm w/Calibration standard and carrying case, stores 2000 readings $2,525/each

#9140htvm-7 - Formaldemeter-htvm w/Calibration standard and carrying case, stores 7 days of readings $2,627.00/each

#9140htvm-1 - Formaldemeter-htvm w/Calibration standard and carrying case, stores 1 month of readings $2,665.00/each

#9141 - Calibration standard only $224.00/each

#9152 - Phenol Filters 100/box $299.50/bx

#9153 - Centigrade thermometer $20.00/each

Click here for printableprice list
